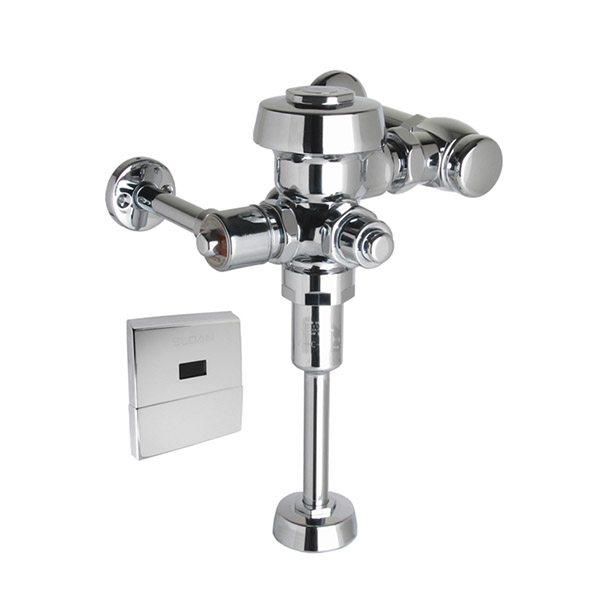

SLOAN 186ESSTMO0.125 HEU TRUE MECHANICAL OVERRIDE 0.125 GPF URINAL FLUSHOMETER

This True Mechanical Override Flushometer is from Sloan Valve. It offers the ultimate in flushing technology with Optima EL-1500 infrared sensor, which adapts to its surroundings. Once the user enters the sensor’s effective range and then steps away, the Flushometer solenoid automatically initiates the flush cycle.

Specifications
• 0.125 GPF
• PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
• “Walk By" Delay of Eight (8) Seconds Prevents Unintentional Flushes
• User Friendly Three (3) Second Flush Delay
• Non-Hold-Open True Mechanical Override
• Non-Hold-Open Integral Solenoid Operator
• Die Cast Sensor Cover Plate with no visible Fasteners (for 2-gang Electrical Box)
• 3/4" I.P.S. Screwdriver Bak-Chek® Angle Stop
• Free Spinning Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for 3/4" Top Spud
• Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID™ Technology
• Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX™ Rubber Compound for Chloramine Resistance

EC Part Number: #85536
Manufacturer Number: 186ESSTMO0.125
Manufacturer: Sloan Valve Co
